80nm NHS-Activated Gold NanoUrchins Conjugation Kit (MIDI Scale-Up Kit)

Cytodiagnostics 80nm NHS-activated Gold NanoUrchin Conjugation Kit have been optimized for high efficiency one-step conjugation of proteins and other primary amine-containing ligands to Cytodiagnostics Gold NanoUrchins.

The kit contains ready-to-use pre-made mixtures. No activation or manipulation of the gold nanourchins is required prior to conjugation, which often results in poor performing conjugates. Simply mix your protein with the pre-activated NHS ester gold nanourchins supplied in the kit.

This MIDI kit contains 1 vial with lyophilized NHS-activated gold nanourchins for performing one independent scale-up conjugation reaction.

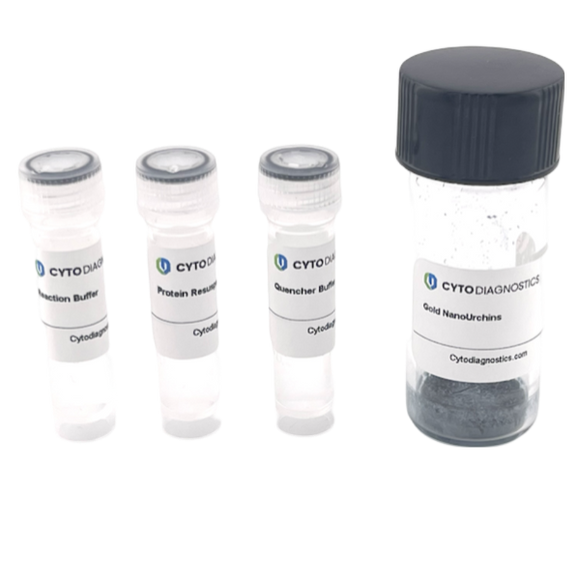

Kit Components

• 80nm NHS-Activated Gold NanoUrchins (lyophilized) - 1 vial
• Protein Resuspension Buffer
• Reaction Buffer
• Quencher Solution

Features & Benefits

• Results in covalently bound ligand and more stable conjugate.
• Fast and convenient one-step conjugation reaction with no pre-activation requirements.
• Spacer between the gold surface and conjugated ligand minimizes effects on the tertiary protein structure, which can lead to poor performing conjugates, a common problem seen in conjugates prepared by passive adsorption.
• Precisely engineering surface coating that reduces non-specific protein binding in biological assays.

Gold Nanoparticle Specifications

Surface functionality: NHS-ester (~ 1 NHS group/nm2) (10kDa PEG-spacer between gold surface and NHS-group)

Core diameter: 80nm

Concentration: OD=20 (when dissolved to a final volume of 1ml)

Particles per ml: ~1.56E+11 (when dissolved to a final volume of 1ml)

Absorbance (lambda max): 620nm
