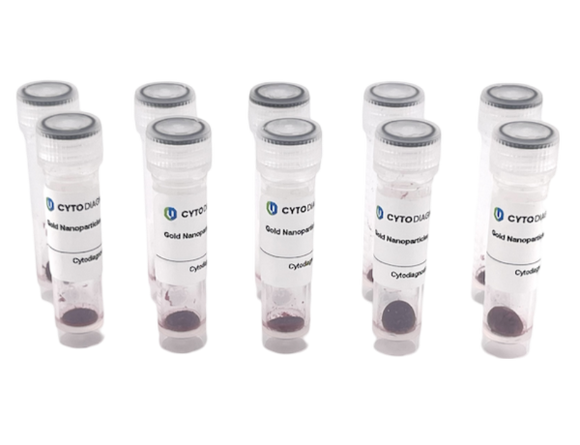

70nm OligoREADY Gold Nanoparticle Conjugation Kit (10 reactions)

SKU: OGC-70-2

$465.00

Cytodiagnostics OligoREADY™ Gold Nanoparticle Conjugation Kits have been optimized for high efficiency one-step conjugation of thiolated-oligonucleotides directly to the gold surface.

The kit contains ready-to-use pre-made mixtures. No activation, manipulation or time consuming "salt-aging" steps are required for conjugation. Simply mix your thiol-modified oligonucleotide with the pre-activated gold nanoparticles supplied in the kit. Conjugation of the oligonucleotide is achieved by the formation of a strong and stable gold-thiol bond.

Kit Components

  • 10 vials of 70nm OligoREADY™ Gold Nanoparticles (lyophilized) - Sufficient for generation of 10 x 0.2 ml gold conjugate at OD=10

Features & Benefits

  • Results in thiol-oligo bound directly to the gold surface through a stable thiol-gold bond.
  • Fast and convenient one-step conjugation reaction with no pre-activation requirements.
  • Does not require time consuming salt aging procedures saving you valuable research time.

Gold Nanoparticle Specifications

Gold Surface: Proprietary OligoREADY™-coating

Core diameter: 70nm

Concentration: OD=2 (when dissolved a final volume of 1 ml)

Particles per ml: ~2.4E+10 (when dissolved to a final volume of 1 ml)

Absorbance (lambda max): 548nm

70nm gold nanoparticles UV-VIS spectrum

Diameter  Peak SPR Wavelength (nm) NPS/ml* Wt. Conc. (mg/ml)* Molar Ext. (M-1cm-1) Size Dispersity (+/-nm) Particle Volume (nm3) Surface Area (nm2) Surface/Volume Ratio Particle Mass (g) Molar Mass (g/mol) Molar Concentration*
70 548 1.20E+10 4.17E-02 5.03E+10 <10% 1.80E+05 1.54E+04 0.086 3.48E-15 2.10E+07 1.99E-11

* All concentrations as indicated at an optical density of 1 (OD=1, i.e. absorbance at peak SPR wavelength with a 1cm pathlength)
