100nm NHS-Activated Gold NanoUrchins Conjugation Kit (3 Reactions)

Cytodiagnostics 100nm NHS-activated Gold NanoUrchin Conjugation Kit have been optimized for high efficiency one-step conjugation of proteins and other primary amine-containing ligands to Cytodiagnostics Gold NanoUrchins.

The kit contains ready-to-use pre-made mixtures. No activation or manipulation of the gold nanourchins is required prior to conjugation, which often results in poor performing conjugates. Simply mix your protein with the pre-activated NHS ester gold nanourchins supplied in the kit.

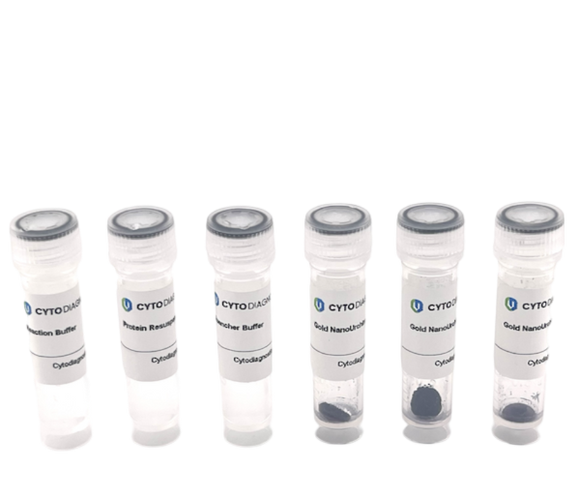

This mini kit contains 3 individual reaction vials with lyophilized NHS-activated gold nanourchins for performing three independent conjugation reactions.

Kit Components

  • 100nm NHS-Activated Gold NanoUrchins (lyophilized) - 3 vials
  • Protein Resuspension Buffer
  • Reaction Buffer
  • Quencher Solution

Features & Benefits

  • Results in covalently bound ligand and more stable conjugate.
  • Fast and convenient one-step conjugation reaction with no pre-activation requirements.
  • Spacer between the gold surface and conjugated ligand minimizes effects on the tertiary protein structure, which can lead to poor performing conjugates, a common problem seen in conjugates prepared by passive adsorption.
  • Precisely engineering surface coating that reduces non-specific protein binding in biological assays.

Gold Nanoparticle Specifications

Surface functionality: NHS-ester (~ 1 NHS group/nm2) (10kDa PEG-spacer between gold surface and NHS-group)

Core diameter: 100nm

Concentration: OD=20 (when dissolved to a final volume of 100ul)

Particles per ml: ~7.68E+10 (when dissolved to a final volume of 100ul)

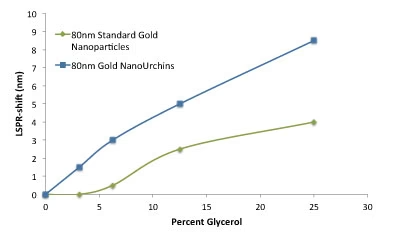

Absorbance (lambda max): 670nm
